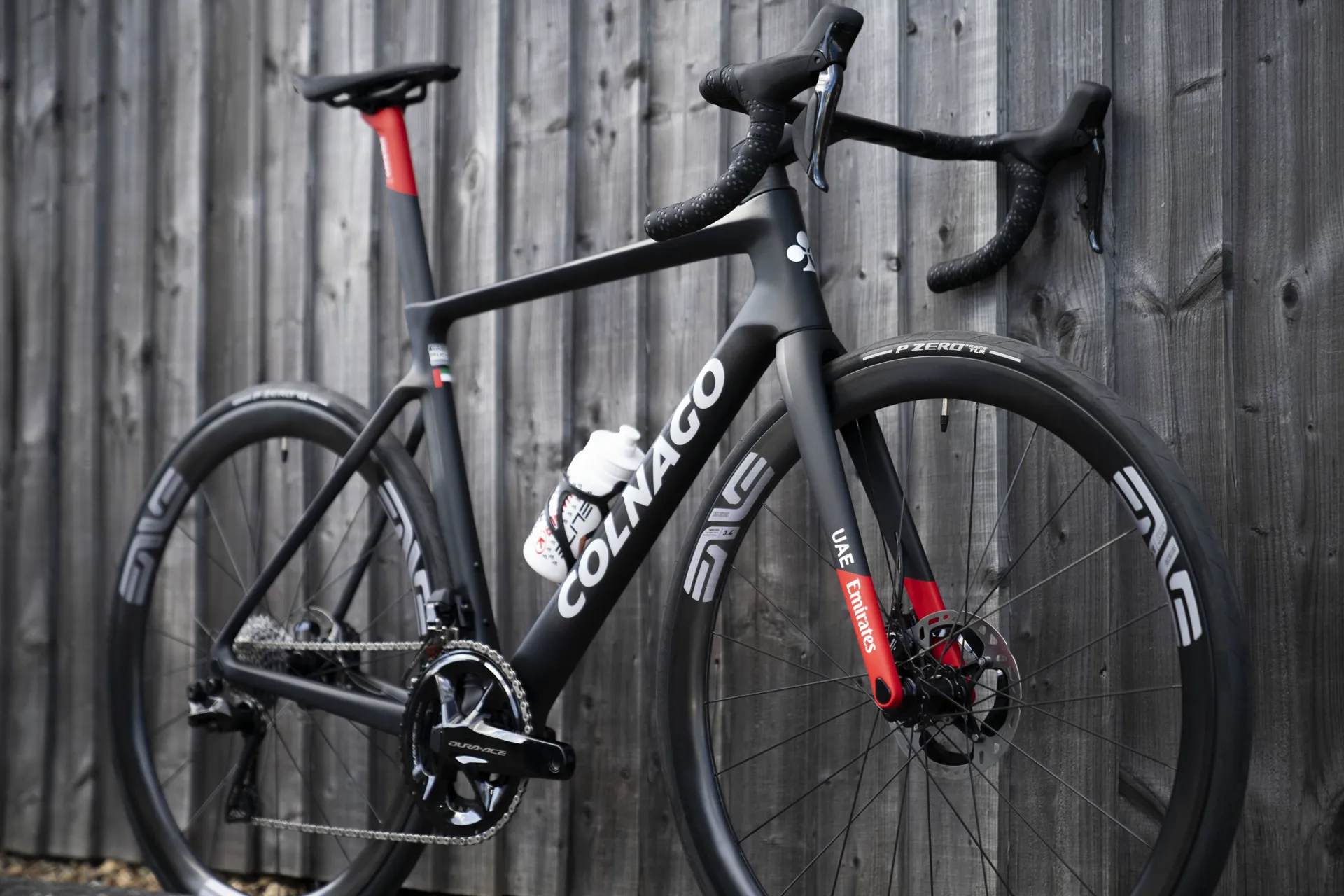

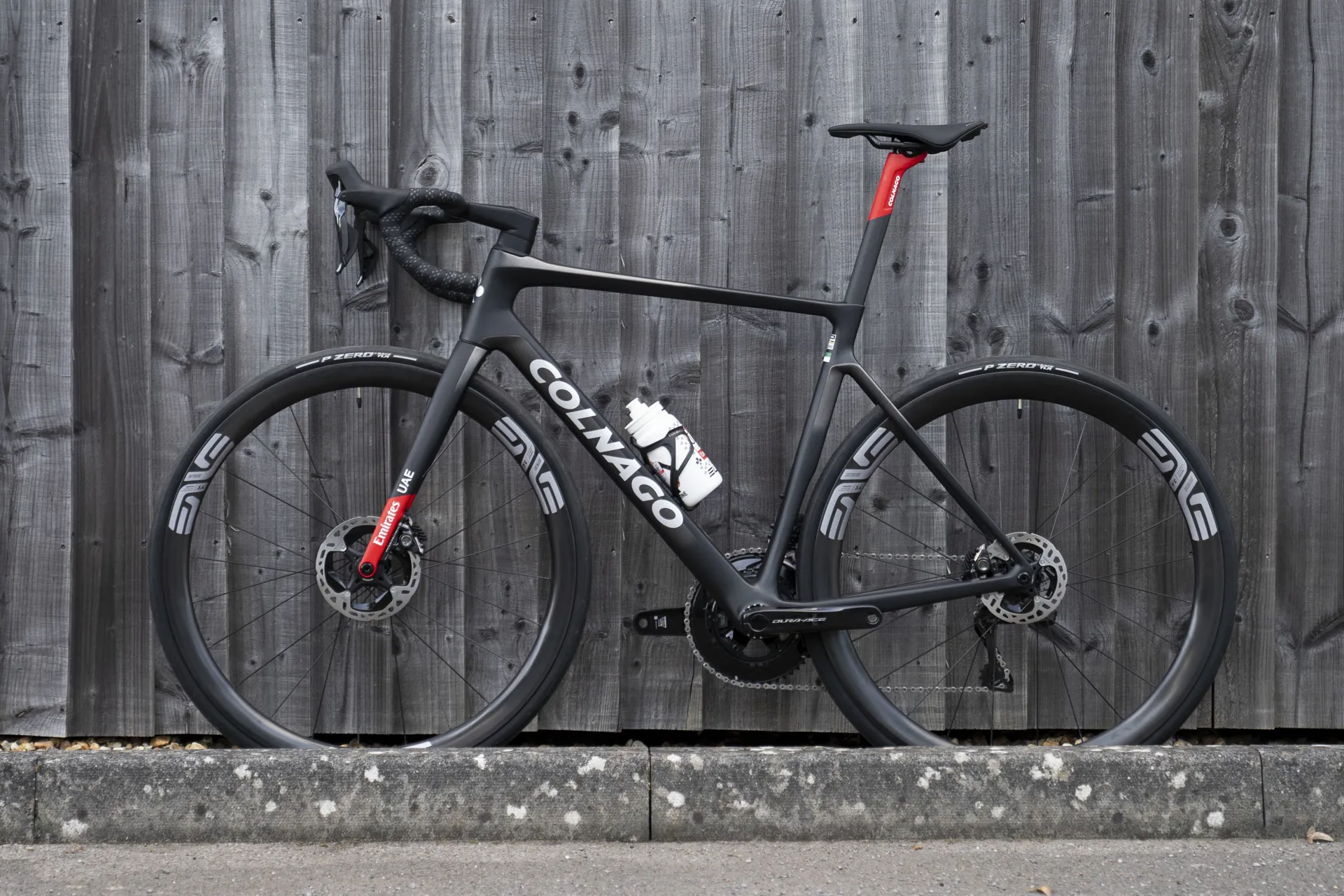

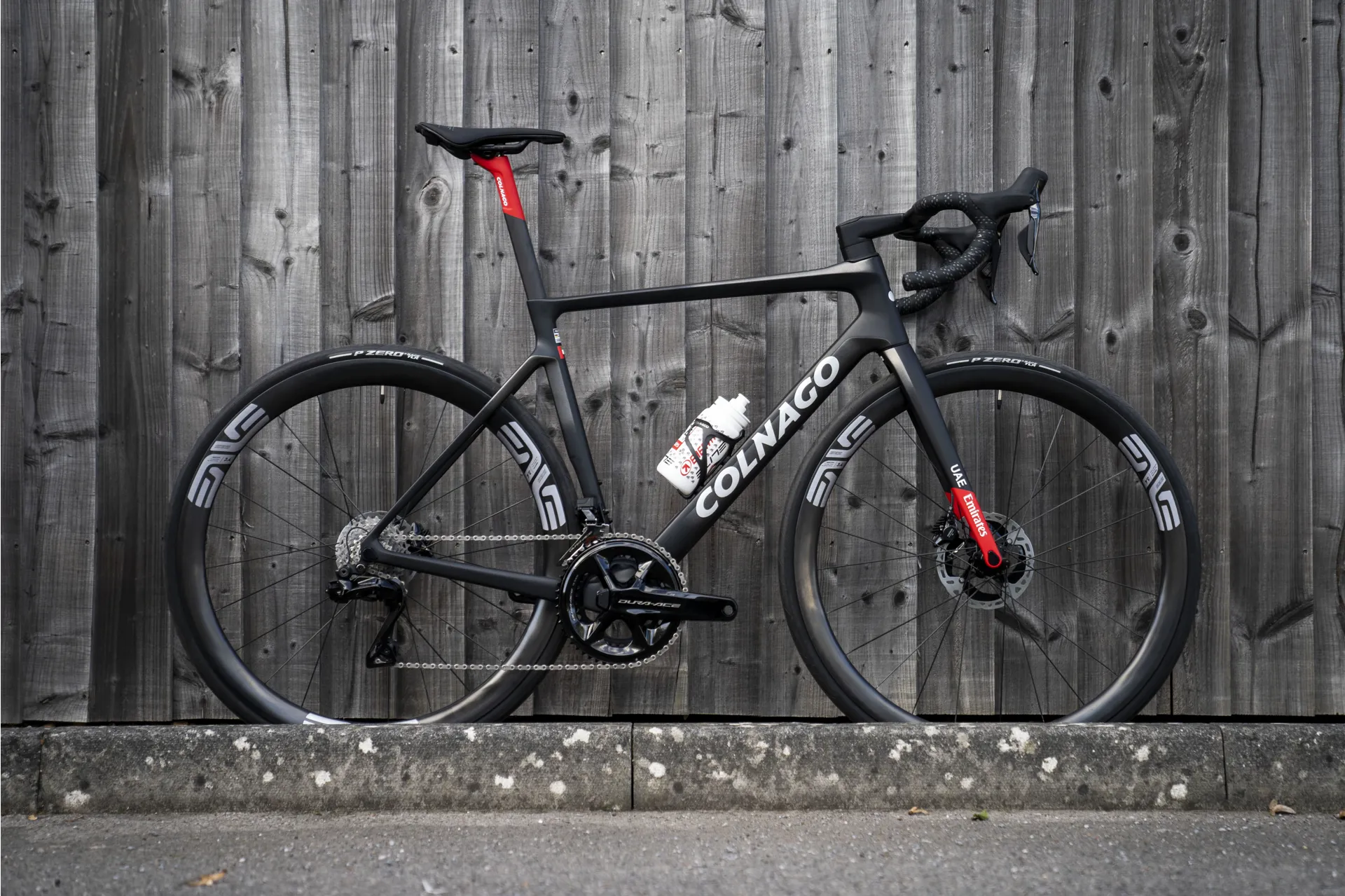

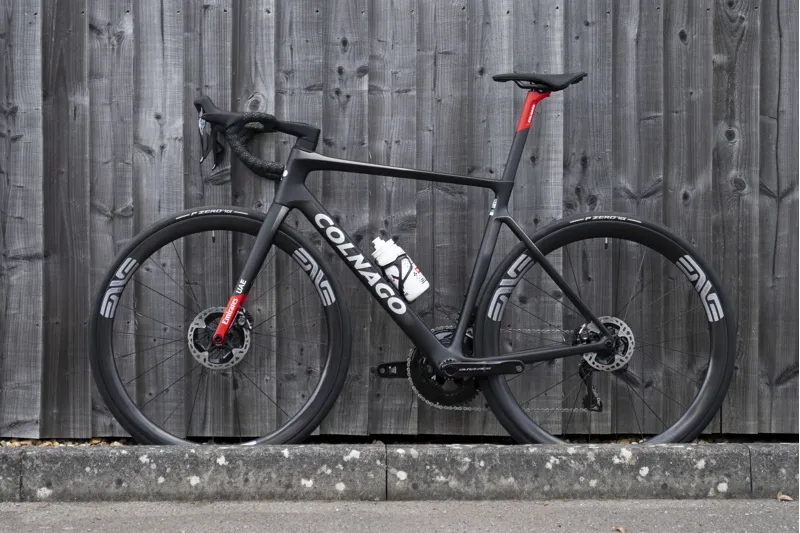

V4Rs - Built to do just one thing: to win
The V Series Colnago means just one thing: a bicycle made for winning races. Every detail is curated and optimized to let Pro riders dominate the most important races WorldWide, such as Monuments and Tour de France.
This V4Rs is equipped with Shimano Dura Ace 9270 groupset and the following wheels
Enve WS SES 3.4C
Versatile, aerodynamic, light and fast. The SES 3.4 has been a staple of the SES wheel family and the latest iteration takes the best features of the previous generation SES 3.4 and 3.4 AR to create the ultimate road wheel set. There is nothing more versatile than the SES 3.4.
Features

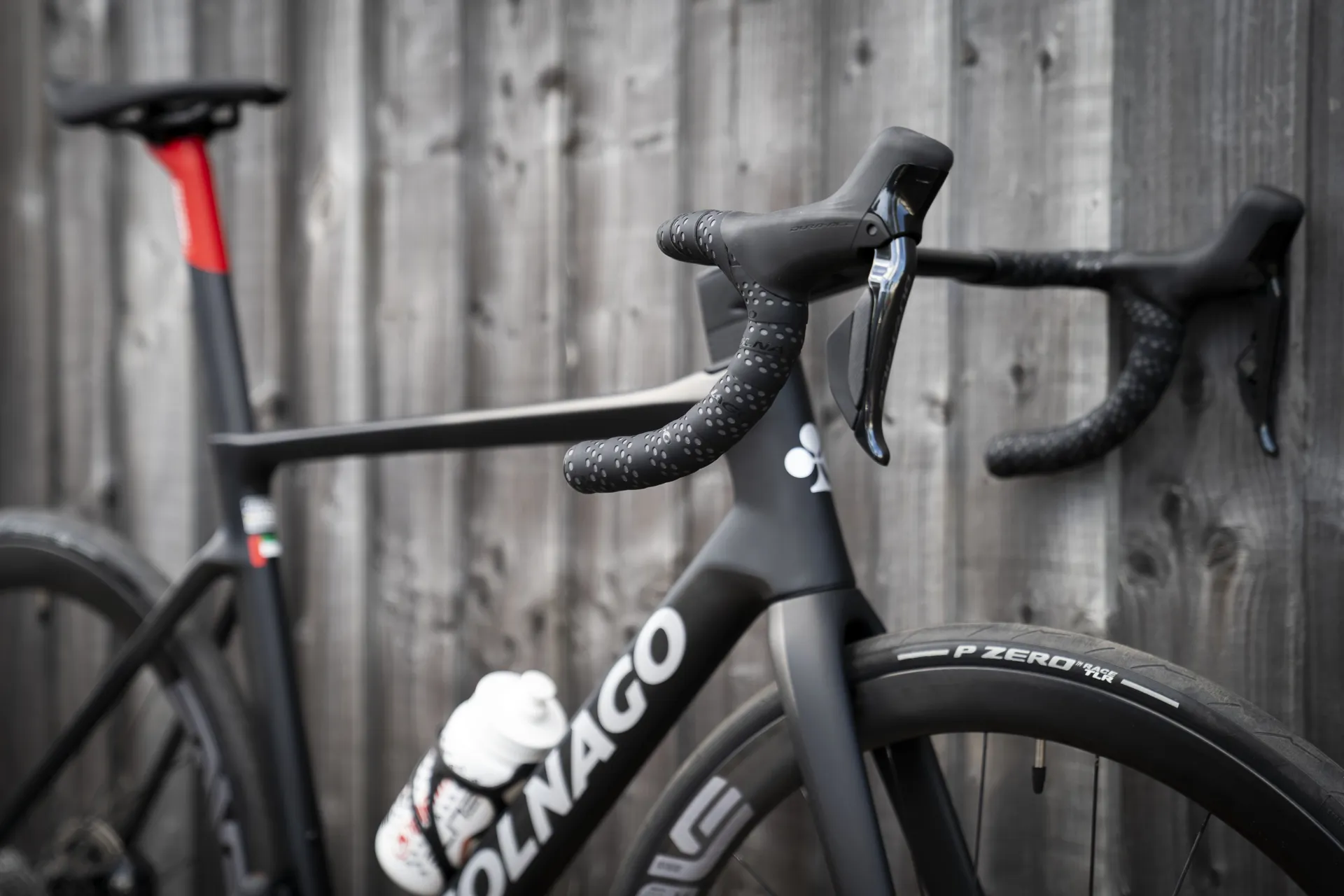

The new CC.01

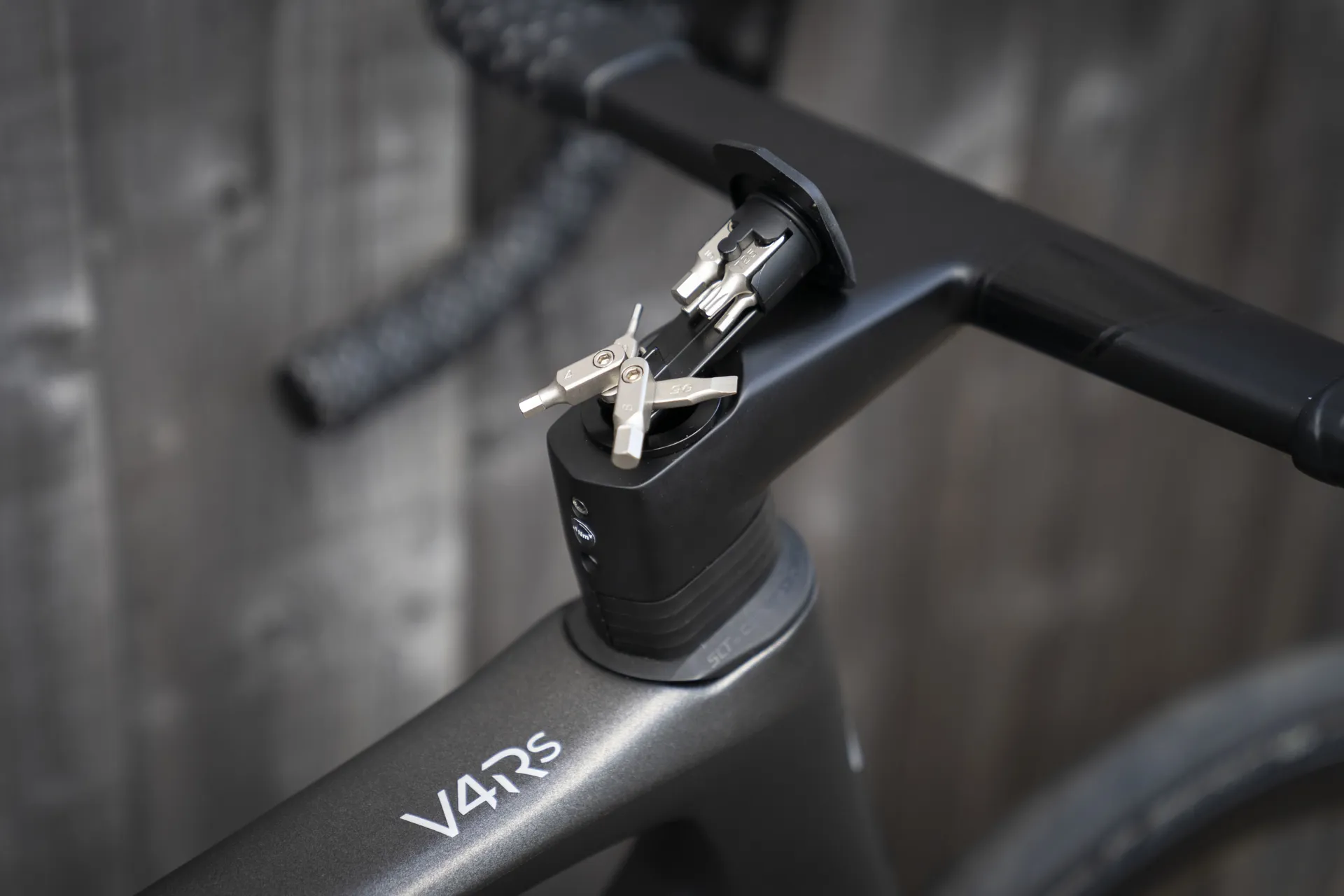

Colnago Cockpit CC.01 has a drag surface reduced by up to 16% compared to the cockpits mounted on V3Rs, and at the same time the shape has been designed as a NACA-derived profile in order to have the minimum impact on the air flow, which is laminar and clean while impacting the components. This aerodynamic evolution was carried out without reducing the cockpit’s overall stiffness, which is as important as aerodynamics in sprint and acceleration.
Aerodynamic data
The performances of V4Rs are those of an aero bike. Compared to the V3Rs, in a real race setup (tested in the wind tunnel with an athlete pedalling at 50kph with 1 bottle and one empty bottle cage) Colnago measured an aerodynamic saving of 3%, corresponding to approx. 13.2 watt. With an advanced aero setup (aero wheels and aero Colnago Computer support) the bike had an aerodynamic saving of 6% (approx. 27.7 watts saved)
Headtube geometry

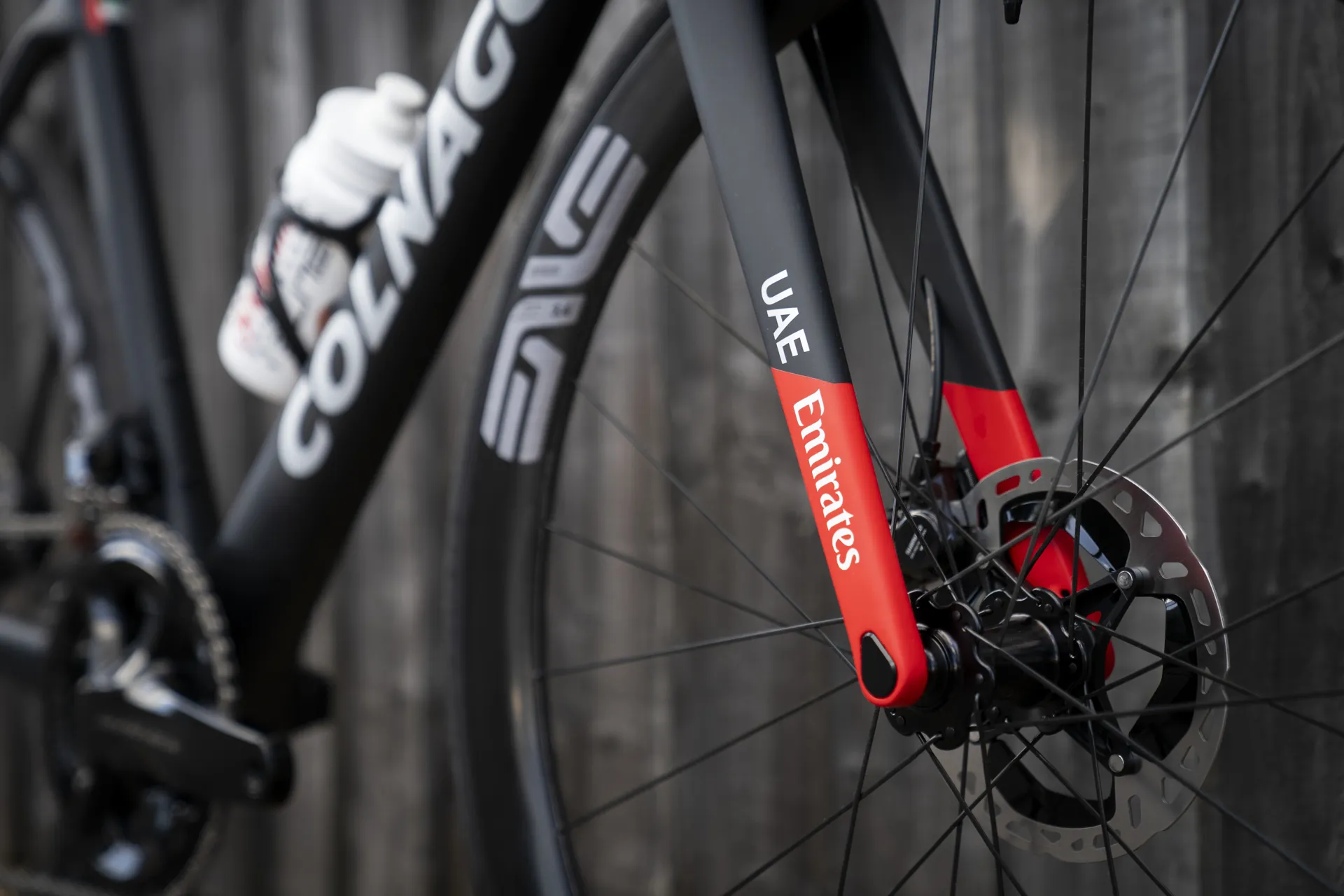

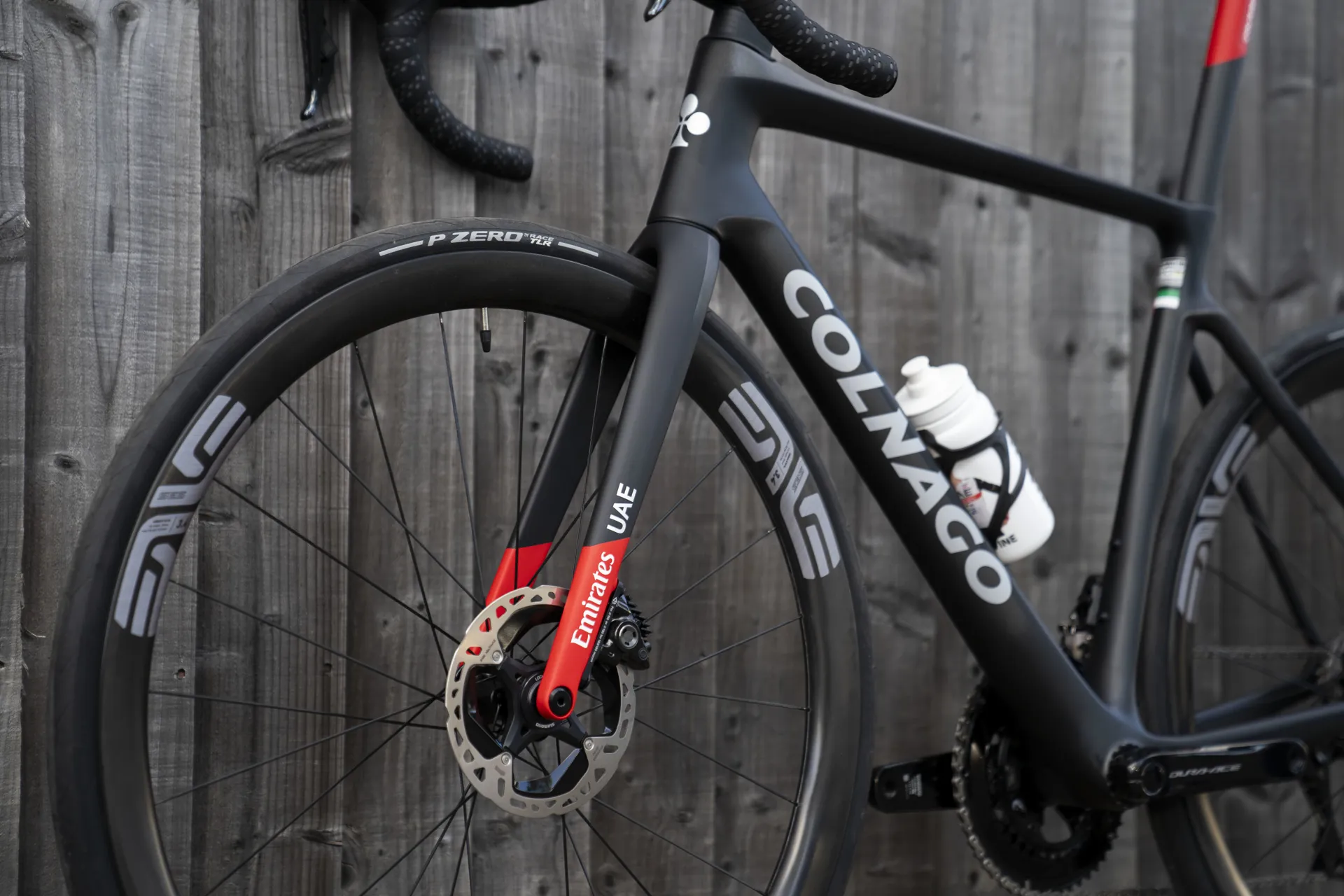

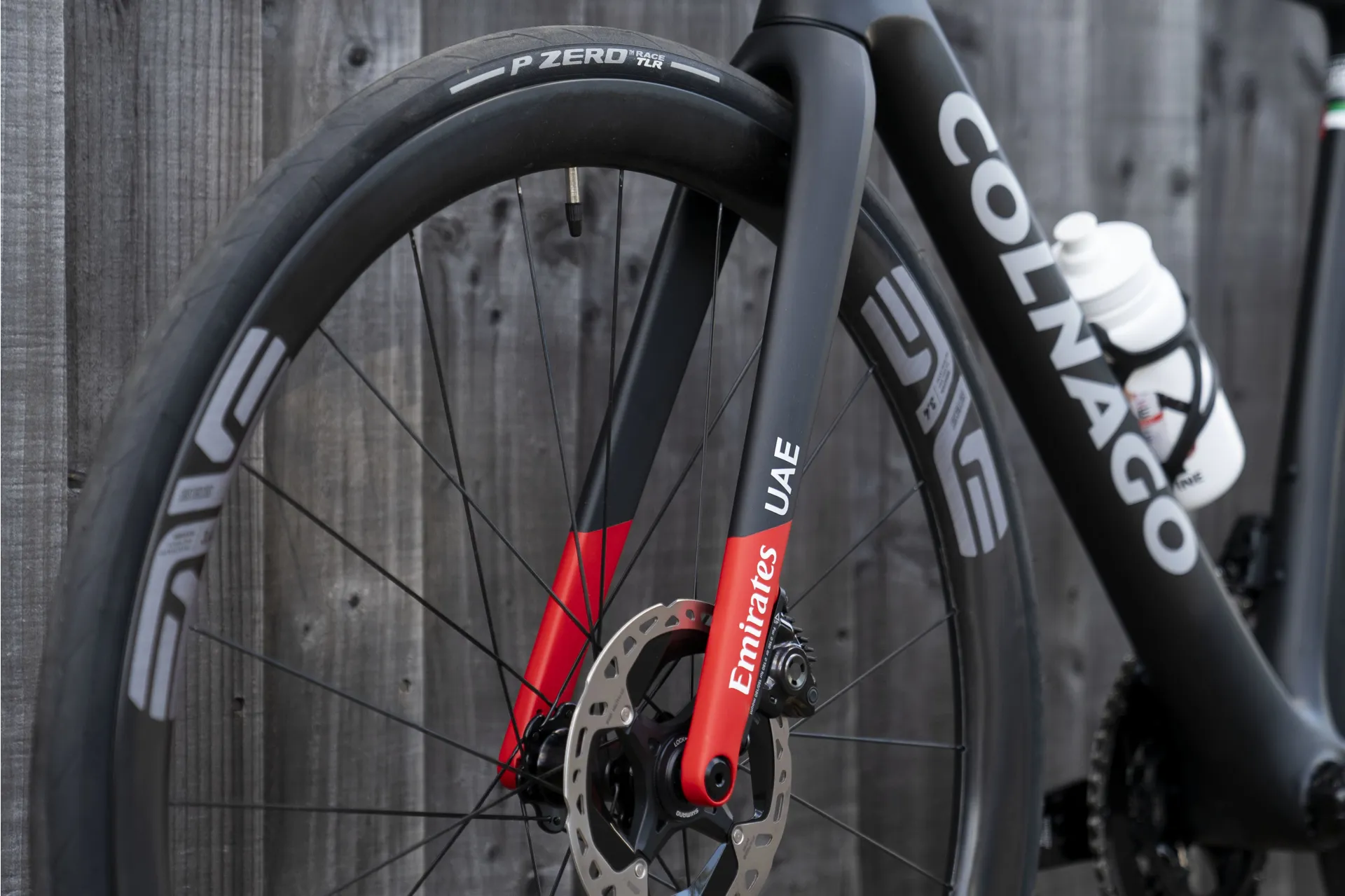

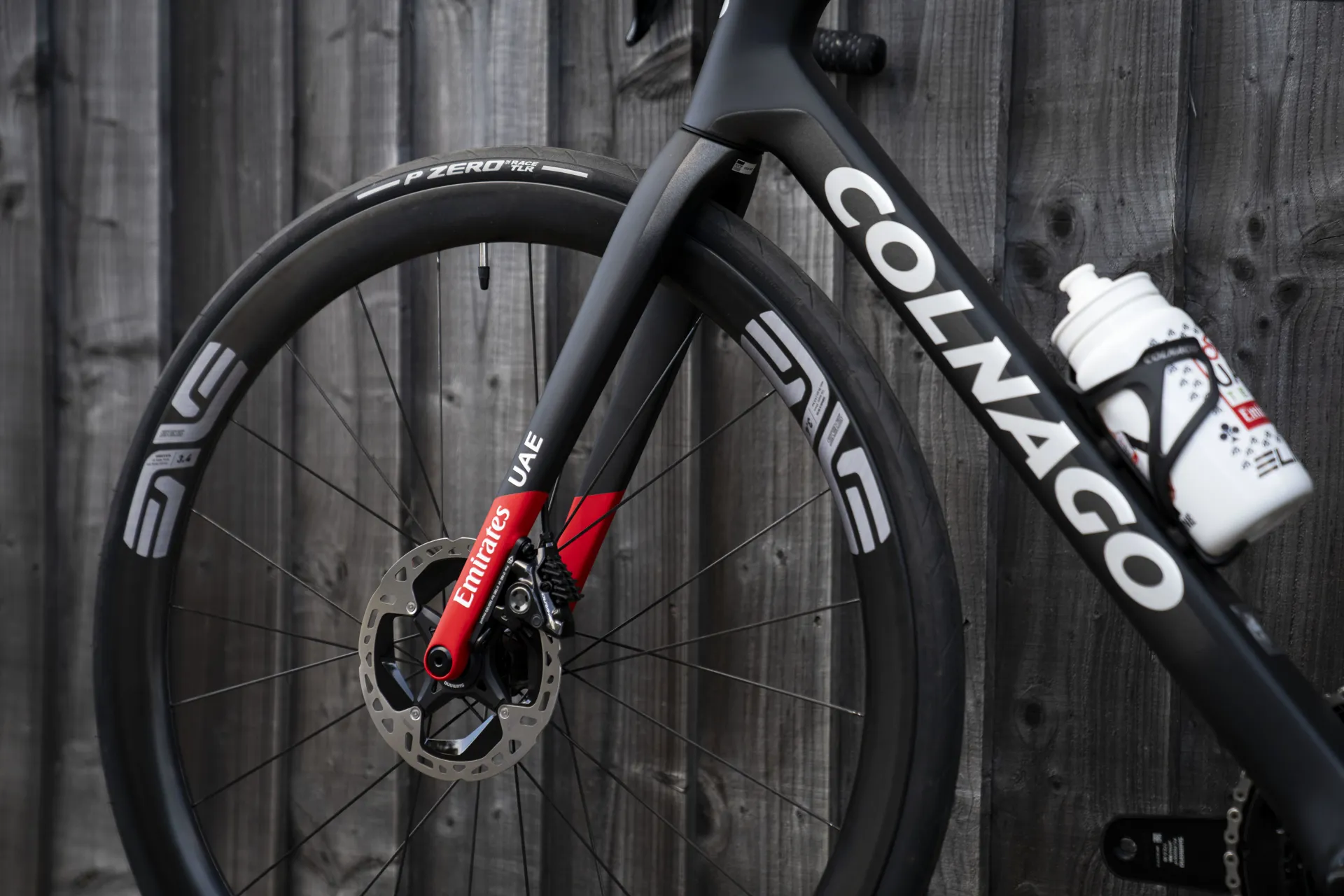

Its shape has been revised and perfectly integrated with the new lightweight fork (designed to allow an effective tire clearance up to 32mm) and with the new cockpit. Although the head set upper bearings are bigger than those of the V3Rs, allowing the cables to run inside without the need of the D-Shaped steerer column and enhancing the overall front-end stability, the overall shape has a better drag.
Accurate measuring
Colnago created internal methodologies to replicate the loading forces of standing-on-pedals and seated positions, and check the overall frame deformation and stiffness. Colnago was able then to define what it called RDS (Real-Dynamic Stiffness), and characterize them in combined multi-load conditions.
Seated position
In the seated position, loads are applied only on the same plane of the front triangle to replicate all-round riding: Taking the V3Rs as reference value, the V4Rs results as 5% stiffer in this occasion.
Sprint position
In the sprint position there is a combination of loads applied both on the handlebar and on the bottom bracket, with both component laying on the front triangle plane and normal to the frame plane, aimed to simulate the flexural and torsional stresses at oscillating cambers. Having the V3Rs as reference value, the V4Rs results as 4% stiffer in this particular position.
Robustness
The new V4Rs significantly improves the crash worth of the most exposed parts which may be subjected to impact in racing conditions. An example is given by the completely new designed seat stays, which, besides their more aerodynamic shape, also significantly improve the flexural and impact resistance. The robustness of this design also minimizes the need of maintenance.
Better handling
The weight distribution has changed from the V3Rs. The front fork is now lighter and the overall weight of the frame kit + handlebar setup has been decreased of 56 grams. The result is a better handling in corners and more safety and precision when going downhill.
Easier bike fitting
Geometry has been revised to have even more balanced performance in all the different sizes with respect to the V3Rs. For the V4Rs the relationship between seat tube length and reach is almost linear, the stack / reach ratio has been optimized and harmonized among all the sizes, and the chain stay length has been reduced. This geometry affords a better balance, power transfer and the same race feeling for all the sizes.
HIGHLIGHTS
- Colnago V4Rs carbon frame and fork
- CeramicSpeed SLT headset
- Electronic groupset compatible only
- Designed for disc brakes
- Fully internal cable routing
- 32mm tyre clearance
- Colnago aero carbon, 15mm offset seatpost included
- Shimano Dura-Ace Di2 disc brake groupset
- Shimano Dura ace r9200p Power-meter
- ENVE SES 3.4 wheelset and Pirelli P-Zero Race SL tyres
TECHNICAL SPECIFICATION
| Frame | Colnago V4Rs, carbon monocoque, disc, approximate weight – 798 grams ( size 51) |
| Fork | Colnago V4Rs, carbon disc, approximate weight – 375g grams (size 51) |
| Headset | CeramicSpeed SLT Bearings |
| Bottom Bracket | T47/86 Shimano 24mm coated |
| Stem/Handlebar | CC.01 Integrated Handlebar and Stem (41cm/100mm) |
| Front Brake | Shimano Dura-Ace R9270 Hydraulic Disc Di2 / RT-MT900 Ice Tech FREEZA Centre-Lock Disc Brake Rotor 160mm |
| Rear Brake | Shimano Dura-Ace R9270 Hydraulic Disc Di2 / RT-MT900 Ice Tech FREEZA Centre-Lock Disc Brake Rotor 140mm |
| Brake Levers | Shimano Dura-Ace R9270 Hydraulic Disc Di2 |
| Front Derailleur | Shimano Dura-Ace FD-9250 Di2 12-speed |
| Rear Derailleur | Shimano Dura-Ace Di2 R9250 12-speed |
| Shift Levers | Shimano Dura-Ace R9270 Hydraulic Disc Di2, 12-speed |
| Chain | Shimano M9100 XTR and Dura-Ace 12-speed |
| Cassette | Shimano Dura-Ace R9200, 12-speed |

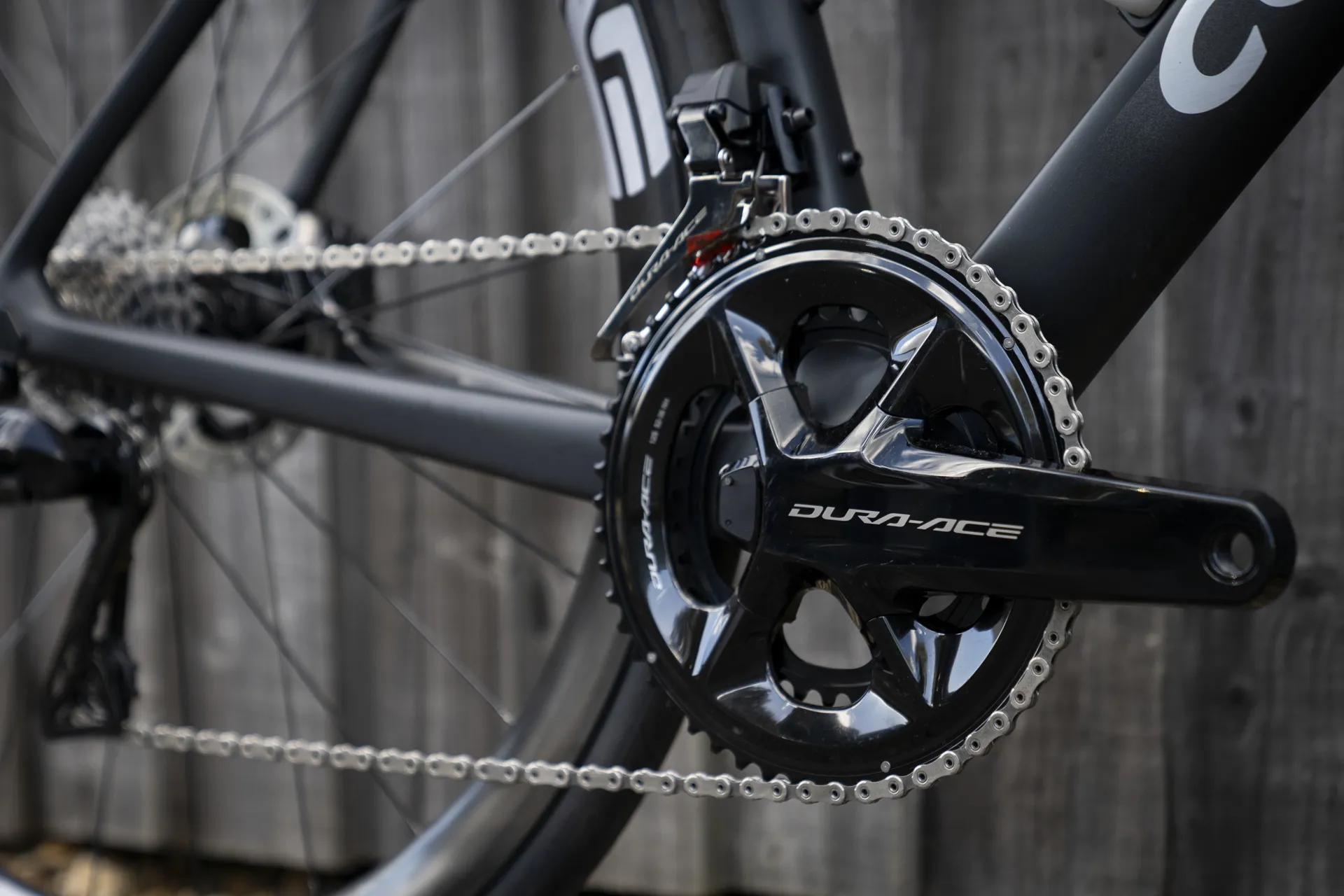

| Crankset | Shimano Dura-Ace FC-R9200p (172.5mm 52/36) |
| Front Wheel | ENVE SES 3.4 disc brake |
| Rear Wheel | ENVE SES 3.4 disc brake |
| Front Tyre | Pirelli P-Zero Race SL TLR Tyre (700x28mm), clincher |
| Rear Tyre | Pirelli P-Zero Race SL TLR Tyre (700x28mm), clincher |
| Saddle | Prologo Carbon |
| Seatpost | Colnago aero carbon, 15mm offset |
